各尺寸長形TFT,

不再受方形限制，全視角~~

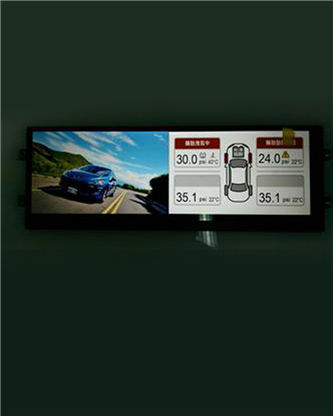

也可做頭後枕小型廣告顯示面板應用、車載螢幕顯示、收銀機螢幕…等等

Resolution
Number of Pixels 1600(W)*RGB*480(H)
Pixel Pitch (mm) 0.4050mm (W)*1.2150mm (H)
Color Pixel Arrangement RGB vertical stripe
Mechanical
Active Area (mm) 194.40(W)*58.32(H)
Module Outline Dimension 208.00(W)*73.00(H)*5.40(T)
Optical
Contrast Ratio 900:1(Typ.)
Response Time Tr Tf (ms) 25 ms (Typ.)
Display Mode Normal Black
Viewing Direction IPS Full View Angle
LCM Brightness (cd/m²) (500) cd/m²(Typ.)
LED Backlight driving condition VF=25.6V，IF =75mA
Electrical
Interface LVDS Interface
Number of Colors 16.7M (8bits)
Power supply 3.3V(Typ.)
Environmental
High Temperature Operation 70℃,240hrs
Low Temperature Operation -20℃, 240hrs
High Temperature Storage 80℃, 240hrs
Low Temperature Storage -30℃, 240hrs
