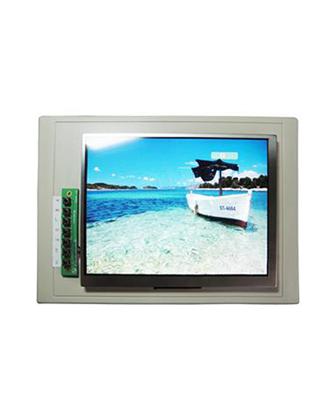

10.4'' TFT ，SVGA，LVDS Receiver 18 bit Interface，背光高亮度，可加T/P
Item
Screen Size
Display Resolution
Pixel Size
Active Area
Specification
10.4 inches
800(H) x 600(V)
192 x180.5
211.2 (H) x 158.4 (V)
Unit
Diagonal
Pixel
um
mm
Outline Dimension
243 (W) x 185.6 (H) x7.83(D)
Display Mode
Normally white mode/ Transmissive
Pixel Arrangement
RGB Vertical Tripe
Display Color
262K Color
Viewing Direction
6 o’clock
Input Interface
LVDS Receiver 18 bit Interface
